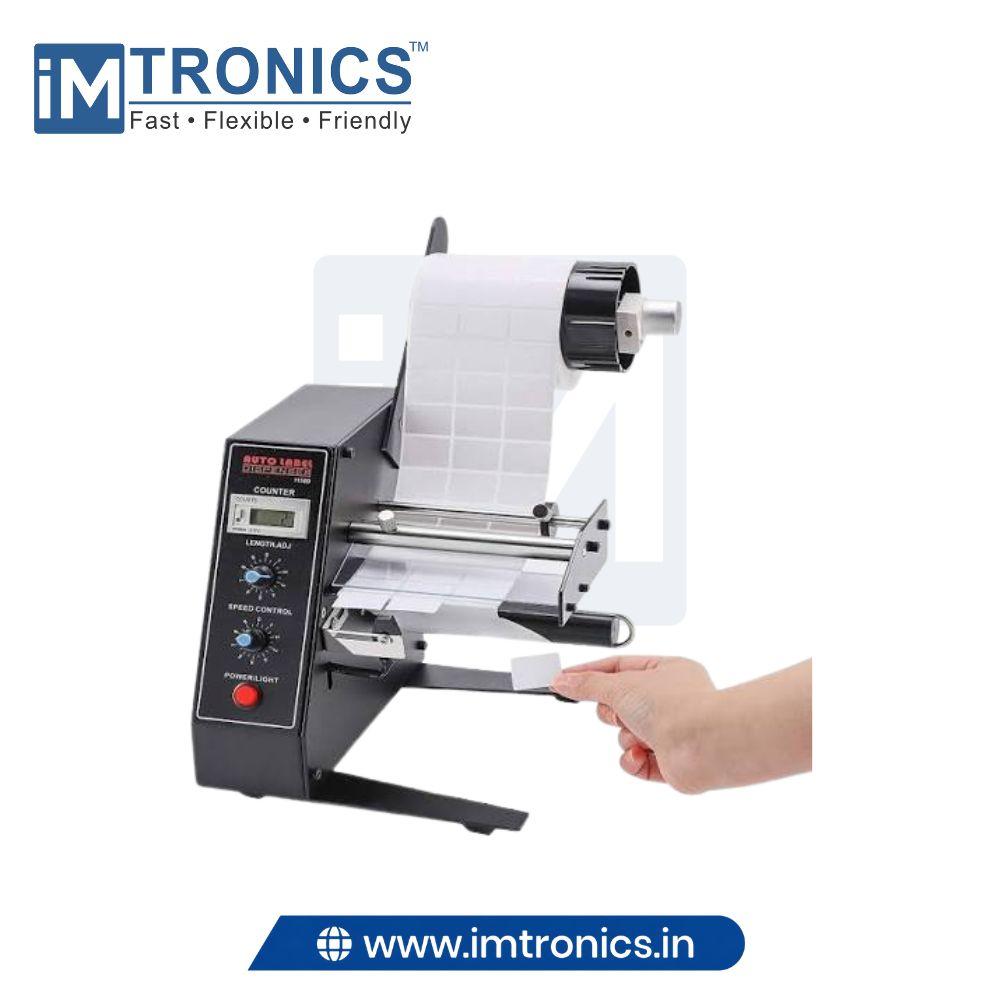

The 1150D Automatic Label Dispenser is a microcomputer-controlled label peeling and dispensing machine designed for fast, repetitive labeling operations. It automatically separates self-adhesive labels from their backing liner and presents the next label after the previous one is removed. A photoelectric sensor provides reliable label detection, while the built-in rewinder collects waste liner for a cleaner workstation.
| Parameter | Specification |
|---|---|
| Model | 1150D / AL-1150D |
| Product Type | Automatic Label Dispenser / Label Stripper |
| Operation Mode | Automatic |
| Label Width Range | 4–140 mm |
| Label Length Range | 3–150 mm |
| Paper Core Inner Diameter | 25–75 mm |
| Maximum Roll Diameter | 250 mm |
| Peeling Speed | 1.5–15 m/min, Adjustable |
| Dispensing Capacity | Approx. 1–3 Labels/sec |
| Counter Range | 0–999,999 |
| Display | Digital Counter |
| Sensor | Photoelectric Sensor |
| Optional Sensor | Fiber Optic Sensor |
| Liner Handling | Automatic Waste Liner Rewinding |
| Power Supply | AC 220V, 50Hz |
| Power Consumption | 30W |
| Dimensions | 210 × 210 × 220 mm |
| Net Weight | Approx. 4.4 kg |
| Suitable Labels | Paper, Self-Adhesive, Kraft Laser, Silver & Anti-Counterfeiting Labels |
| Primary Function | Automatic Label Peeling & Dispensing |
| Application Area | Electronics, Packaging, Manufacturing & Assembly Lines |
