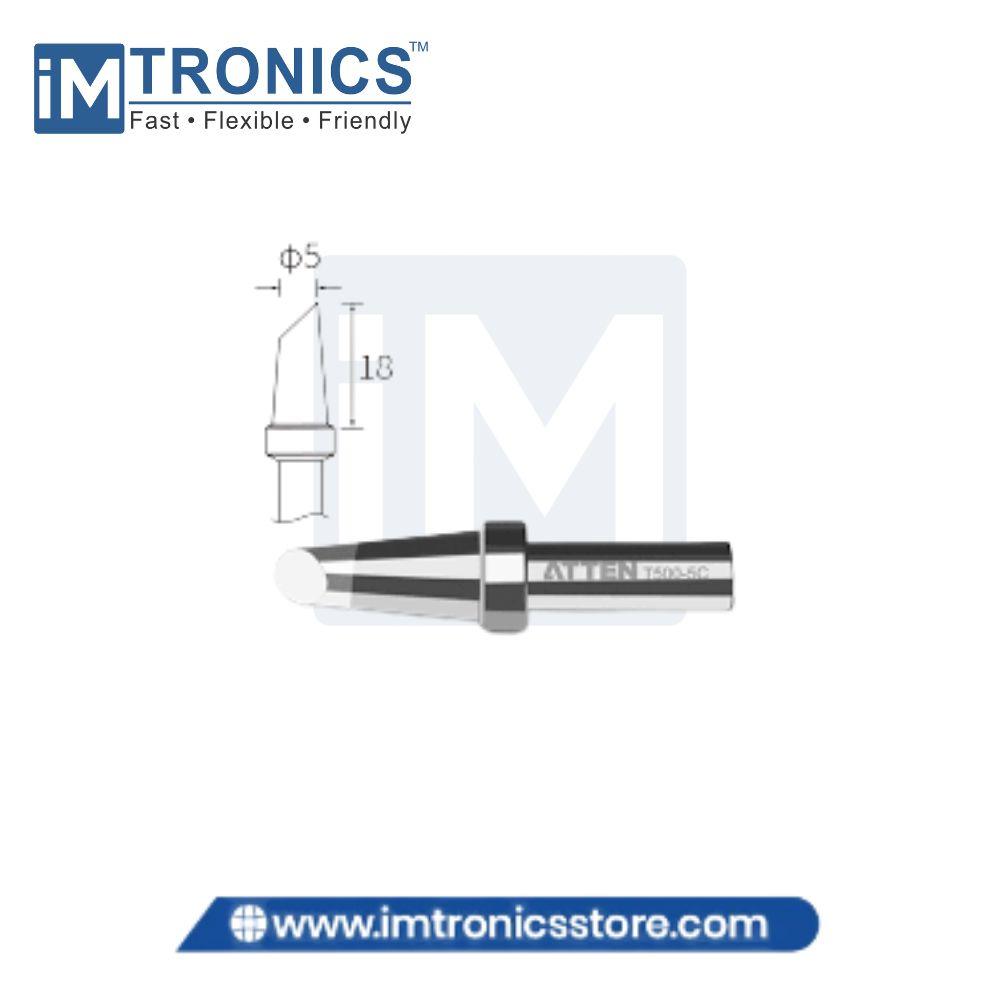

The ATTEN T500-5C is a heavy-duty C-type / bevel soldering tip from the T500 Series. Its 5 mm diameter and 45° bevel face provide a broad contact area for efficient heat transfer and solder flow. It is suitable for larger PCB pads, terminals, connectors, wires, and high thermal-mass solder joints. ATTEN catalogue data identifies its part number as ACF028940.
| Parameter | Specification |
|---|---|
| Brand | ATTEN |
| Model | T500-5C |
| Part Number | ACF028940 |
| Product Type | Soldering Bit / Tip |
| Series | T500 Series |
| Tip Shape | C-Type / Bevel |
| Tip Diameter | Ø5 mm |
| Bevel Angle | 45° |
| Working Tip Length | 18 mm |
| Tip Installation | Replaceable |
| Suitable Process | High-Power Hand Soldering |
| Compatible Handpiece | ATTEN SP-H150 |
| Compatible Station | ATTEN ST-1503 / ST-1503D |
| Lead-Free Soldering | Suitable |
| Primary Function | High Heat Transfer & Solder Flow |
| Application Area | Large PCB Pads, Terminals, Connectors, Wires & Rework |
