Bakon 375B+ Automatic solder feeding Station

SKU code: #IMT00294

Category Name: Soldering & Rework Station

₹21,900 (10% off)

MRP

₹24,333

You save ₹2,433(10% off)

Inclusive of all taxes

₹21,900 (10% off)

MRP

₹24,333

You save ₹2,433(10% off)

Inclusive of all taxes

Available Units

Available Stocks : 6

Estimate delivery times: 5-7 days .

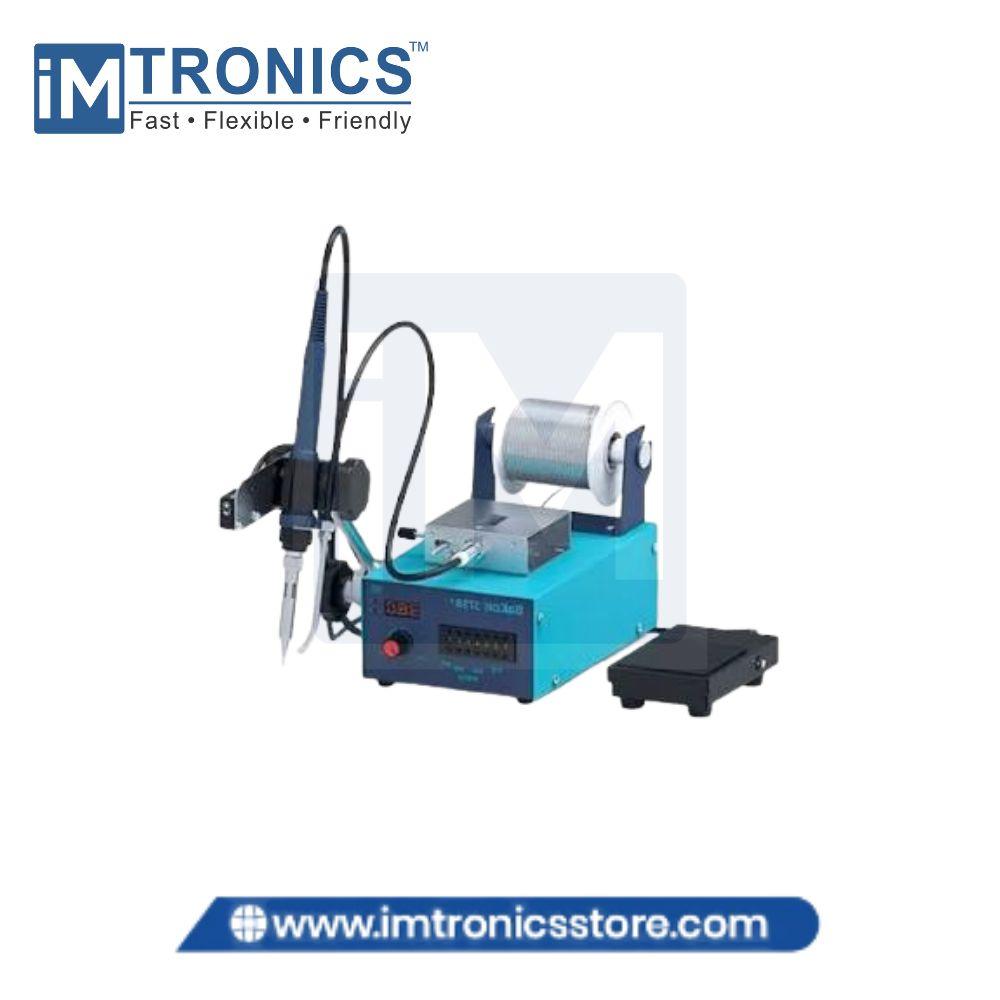

BAKON BK-375B+ Automatic Solder Feeding Station

The BAKON BK-375B+ Automatic Solder Feeding Station combines temperature-controlled soldering with automatic solder-wire feeding for repetitive soldering operations. Its adjustable feeding parameters and multiple feeding modes help improve solder supply consistency and operator efficiency in electronics assembly and production work.

Specifications

Parameter	Specification
Brand	BAKON
Model	BK-375B+
Product Type	Automatic Solder Feeding Station
Input Voltage	AC 230V, 50Hz
Maximum Power	70W
Temperature Range	200–480°C
Temperature Control	PID Control
Solder Feeding Modes	Manual / Automatic / Induction
Feeding Motor	Stepper Motor
Solder Feeding Speed	2.7–27 mm/s
Solder Output Length	0–150 mm
Feeding Interval	0–2.7 s
Solder Retraction / Back-to-Tin	0–0.9 s
Compatible Solder Wire Diameter	0.8 / 1.0 / 1.2 mm
Soldering Tip Series	BK900M Series
Compatible Handpiece	SBK907B
Application Area	Electronics Assembly & Production Soldering

Applications

Electronics Assembly – Consistent solder feeding during manual soldering.
Production Lines – Supports repetitive soldering operations.
PCB Assembly – Controlled solder-wire delivery for component joints.
Wire & Terminal Soldering – Suitable for repetitive connection work.
Repair & Rework – Combines soldering and feeding in one workstation.
Operator-Assisted Production – Reduces repeated manual solder-wire handling.
