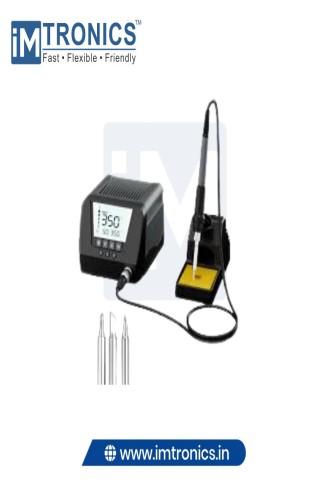

Bakon BK-1000 Soldering Station

BAKON BK-1000 is a 90W high-frequency eddy-current heating soldering station designed for professional electronics assembly, lead-free soldering, repair and rework applications. Its high-frequency heating system provides rapid heating and thermal recovery, while microcomputer-based control enables accurate temperature setting.

90W maximum output power.
High-frequency eddy-current heating technology.
Fast heating and rapid thermal recovery.
Temperature range from 200°C to 500°C.
Temperature stability of ±2°C under no-load conditions.
Microcomputer-controlled temperature regulation.
Button-type temperature adjustment.
Digital temperature calibration.
Password temperature-lock function helps prevent unauthorized setting changes.
ESD-safe / anti-static design for electronics applications.
Tip-to-ground resistance of <2Ω.
Tip-to-ground potential of <2mV.
Uses LF100 soldering handle.
Equipped with VH90 heating core.
Compatible with 200M series soldering tips.
Supplied/compatible with BK506A soldering iron stand.

Specifications

Parameter	Specification
Brand	BAKON
Model	BK-1000
Product Type	High-Frequency Lead-Free Soldering Station
Operating Voltage	AC 230V / 50Hz
Maximum Output Power	90W
Temperature Range	200–500°C
Temperature Stability	±2°C (No Load)
Heating Technology	High-Frequency Eddy-Current Heating
Temperature Control	Microcomputer Controlled
Temperature Adjustment	Button Type
Temperature Calibration	Digital Calibration
Temperature Lock	Password Lock Function
Tip-to-Ground Resistance	<2Ω
Tip-to-Ground Potential	<2mV
Soldering Handle	LF100
Heating Core	VH90
Compatible Tip Series	200M Series
Soldering Iron Stand	BK506A
Station Dimensions	145 × 125 × 95 mm
Station Weight	Approx. 0.85 kg
ESD Design	ESD Safe
Primary Application	Lead-Free Electronics Soldering

Applications

PCB Assembly – Manual soldering of electronic components.
Lead-Free Soldering – Suitable for professional lead-free soldering processes.
SMT Rework – Component-level soldering during repair and rework.
Through-Hole Soldering – Suitable for leads, terminals and connectors.
Electronics Manufacturing – Production-line manual soldering applications.
Electronics Repair – Component replacement and solder-joint repair.
R&D Laboratories – Prototype assembly and development work.
Consumer Electronics Repair – Suitable for applicable board-level soldering.
Production Workstations – Temperature lock helps maintain controlled process settings.
Technical Training Labs – Suitable for professional soldering training.
