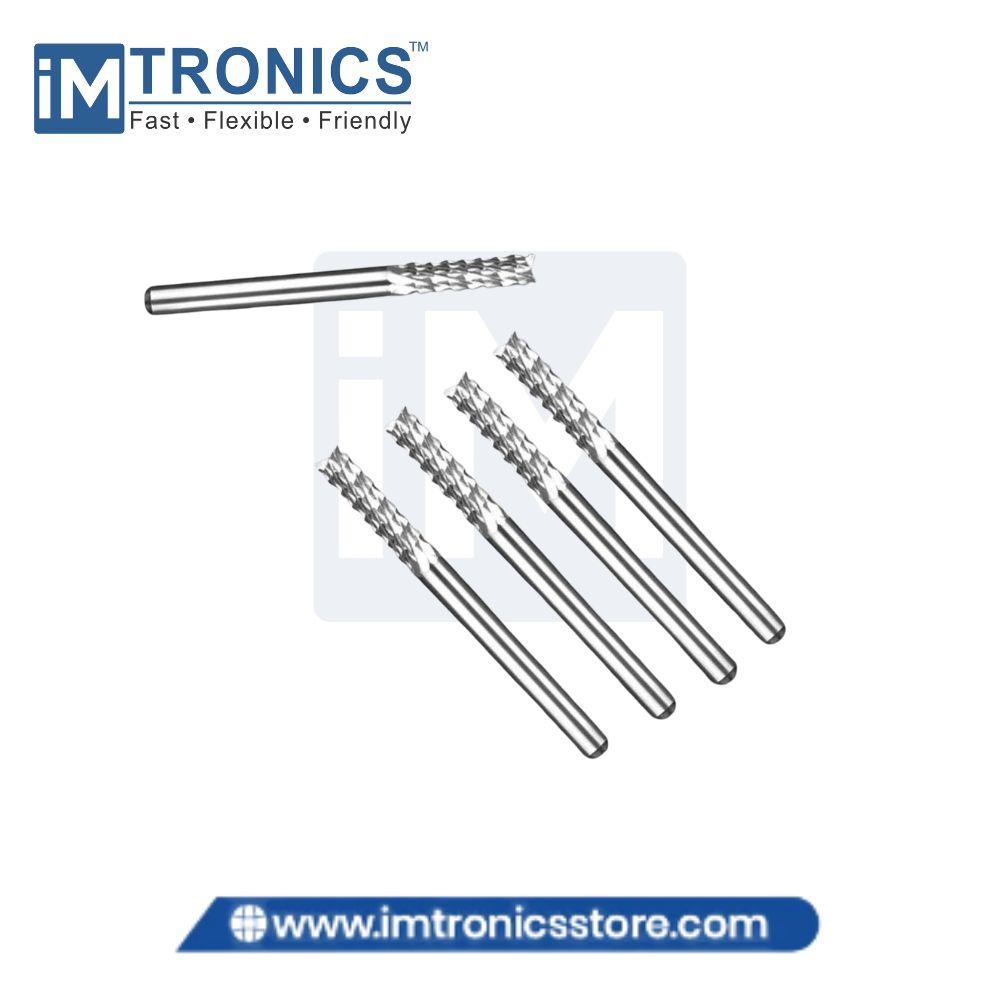

The PCB Router Bit 1.2mm (UC) is a precision up-cut carbide router bit used for PCB routing, profiling, slotting, and depaneling. The up-cut geometry helps remove chips and routing dust upward during cutting, supporting cleaner machining on FR4 and similar PCB materials. Standard 1.2 mm PCB router bits commonly use a 3.175 mm shank, 38.1 mm overall length, and approximately 8.0 mm flute length.
| Parameter | Specification |
|---|---|
| Product Name | PCB Router Bit |
| Size | 1.2 mm |
| Cutting Type | UC (Up Cut) |
| Cutting Diameter | 1.2 mm |
| Shank Diameter | 3.175 mm (1/8 Inch) |
| Cutting / Flute Length | 8.0 mm |
| Tool Material | Solid Tungsten Carbide |
| Cutting Geometry | Up-Cut |
| Machine Compatibility | CNC / Automatic PCB Router Machine |
| Suitable Material | FR4 & General PCB Materials |
| Operation | Routing, Profiling, Slotting & Depaneling |
| Application | PCB Cutting & Board Separation |
