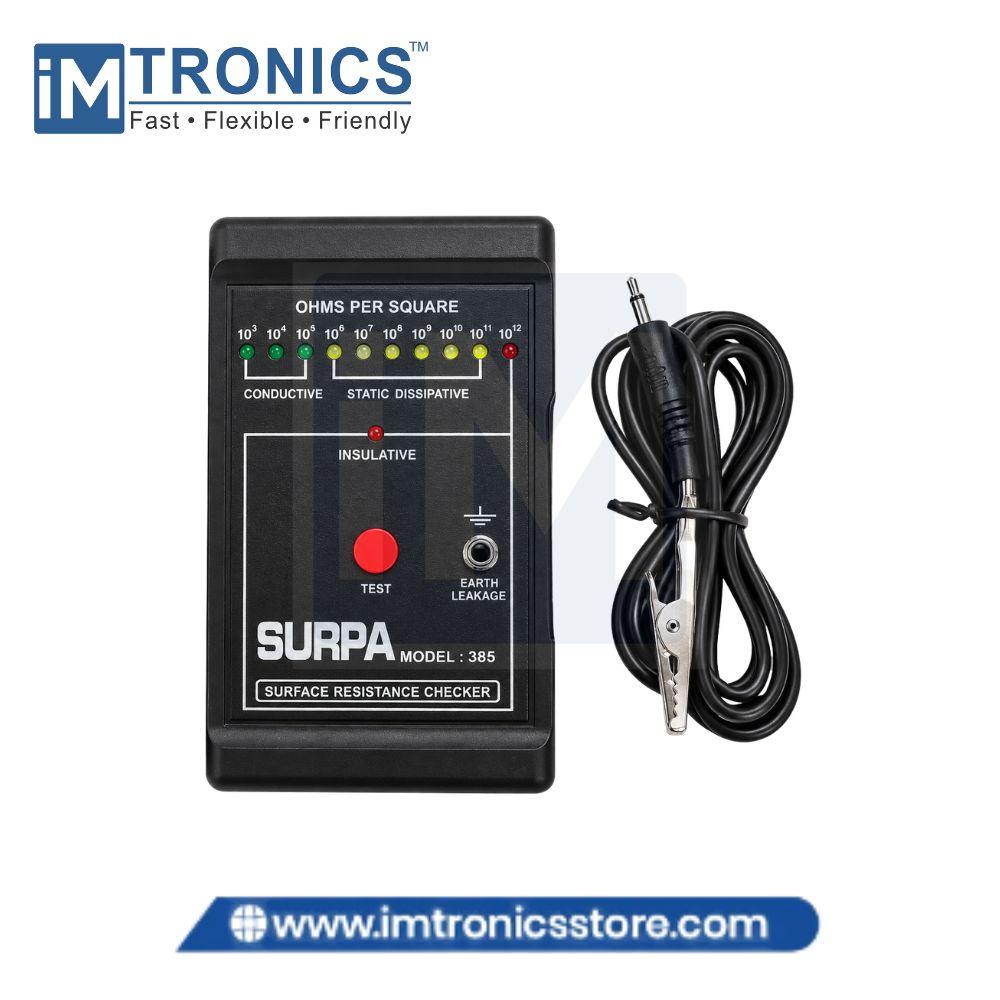

Surpa-385 is a portable surface resistance checker designed for ESD control and material testing. It measures both surface resistivity and resistance to ground, making it suitable for checking conductive, static-dissipative, and insulating surfaces. The instrument uses the ASTM D-257 parallel-bar sensing method and provides quick LED indication across its measurement range.
| Parameter | Specification |
|---|---|
| Brand | SURPA |
| Model | SURPA-385 |
| Product Type | Surface Resistance / Resistivity Meter |
| Measurement Range | 10³ to 10¹² Ω/Sq |
| Measurement Functions | Surface Resistivity & Resistance to Ground |
| Display | LED Indication |
| Test Method | Parallel Bar Sensing, ASTM D-257 |
| Test Voltage | 10 V |
| Accuracy | ±10% |
| Repeatability | ±5% |
| Operating Humidity | 0–90% RH |
| Operating Temperature | 5°C to 49°C |
| Power Supply | 9 V Alkaline Battery |
| Dimensions | 130 × 70 × 25 mm |
| Weight | Approx. 170 g |
| Operation | Handheld / Portable |
| Application | ESD Workstations, Floors, Mats & Static-Control Materials |
Applications
