Juki 501 Nozzle

SKU code: #IMT00680

Category Name: SMT Spare

₹1,550 (10% off)

MRP

₹1,722

You save ₹172(10% off)

Inclusive of all taxes

₹1,550 (10% off)

MRP

₹1,722

You save ₹172(10% off)

Inclusive of all taxes

Available Units

Available Stocks : 15

Estimate delivery times: 5-7 days .

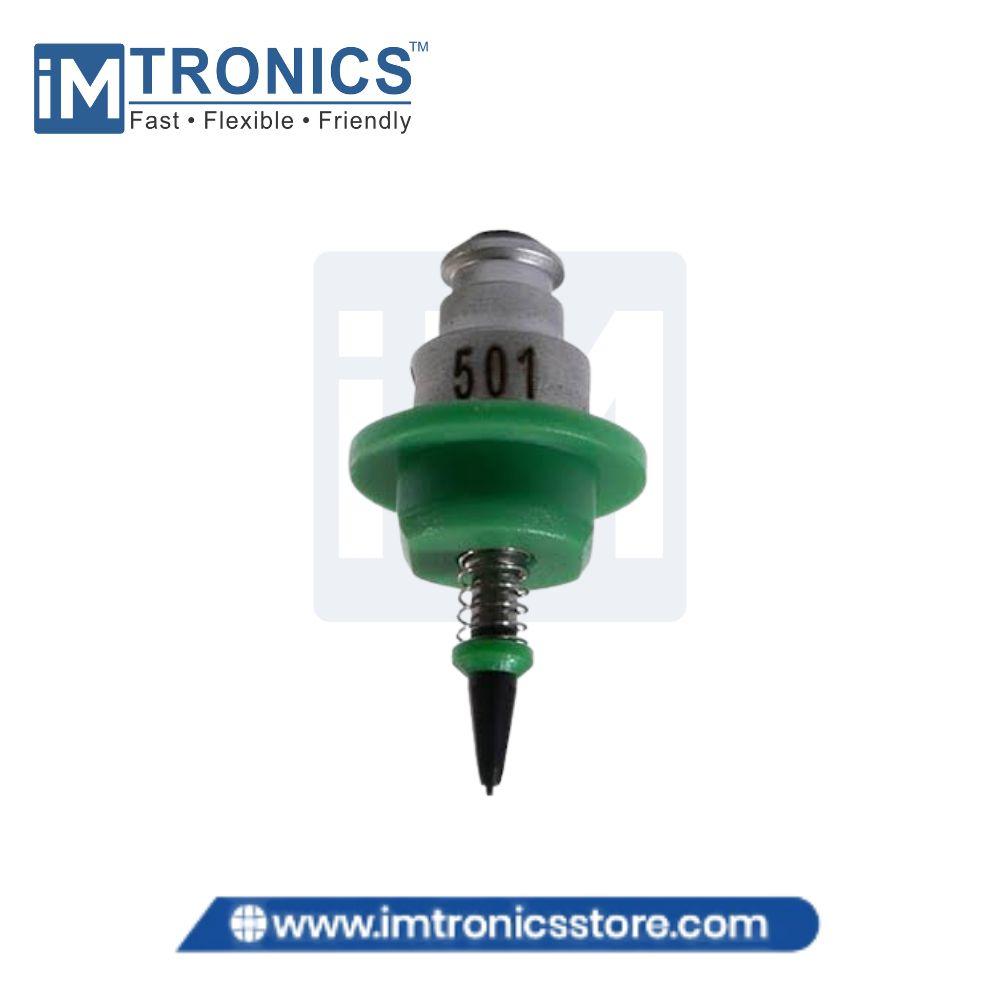

JUKI 501 Nozzle

The JUKI 501 Nozzle is a precision vacuum pick-up nozzle for JUKI SMT pick-and-place machines. It is designed for very small chip components and is commonly specified for 0603 metric (0201 imperial) component handling. The standard 501 nozzle uses a 0.7 × 0.4 mm tip with two Ø0.2 mm vacuum holes.

Specifications

Parameter	Specification
Brand	JUKI
Product Name	JUKI 501 Nozzle
Product Type	SMT Pick & Place Nozzle
Nozzle Number	501
Tip Size	0.7 × 0.4 mm
Vacuum Holes	Ø0.2 mm × 2 Holes
Operating Method	Vacuum Pick-Up
Typical Component	0603 Metric (0201 Imperial)
Machine Compatibility	JUKI SMT Pick & Place Machines
Compatible Series	KE-2000 / KE-2050 / KE-2060 Series
Primary Function	Micro Component Pick-Up & Placement
Application	SMT PCB Assembly

Applications

Micro SMD component pick-and-place
0603 metric component placement
0201 imperial chip handling
Small resistor and capacitor placement
Precision PCB assembly
High-density SMT assembly
Automated JUKI SMT production lines
