SKU code: #IMT00684
Category Name: SMT Spare
₹1,722
You save ₹172(10% off)
Inclusive of all taxes
₹1,722
You save ₹172(10% off)
Inclusive of all taxes
Estimate delivery times: 5-7 days .

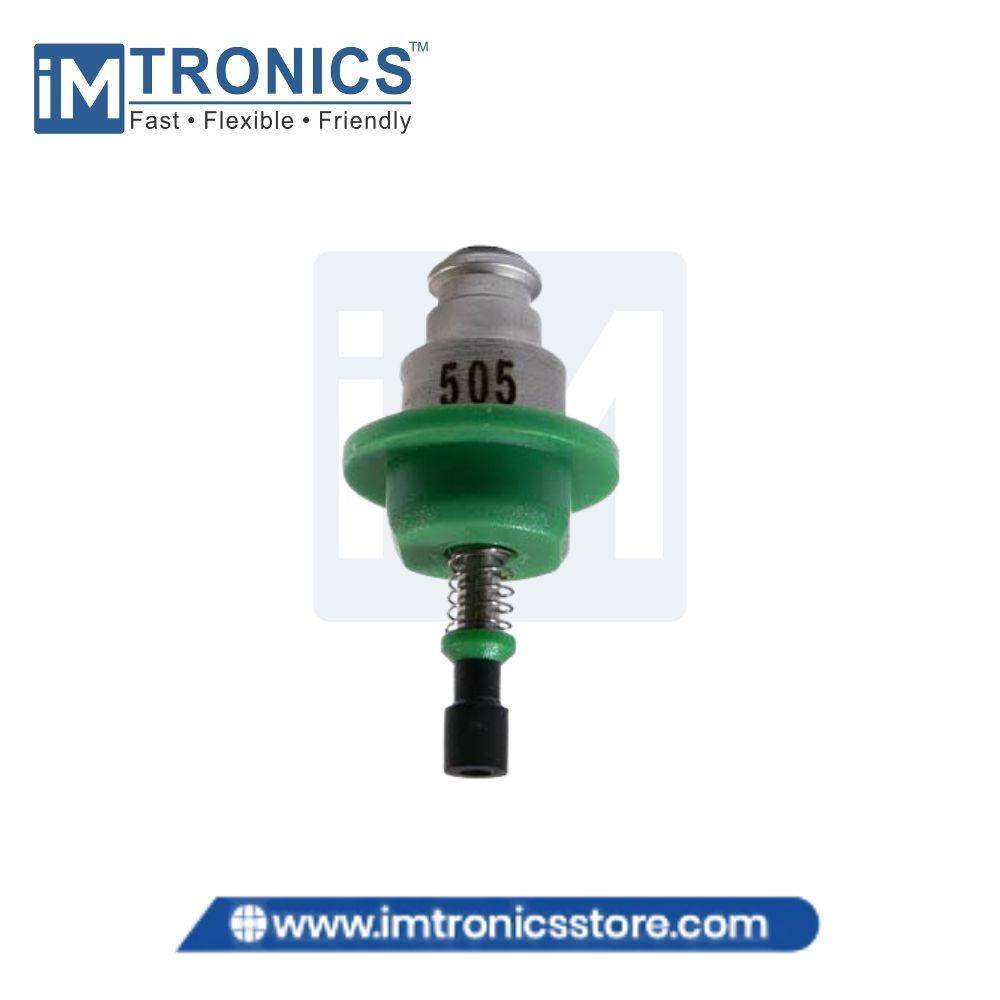

The JUKI 505 Nozzle is a pad-type vacuum pick-up nozzle designed for JUKI SMT pick-and-place machines. It has a Ø3.5 mm outer diameter and Ø1.7 mm inner diameter, making it suitable for handling medium-size SMT components during automated PCB assembly. The nozzle assembly is commonly identified by part number E3604-729-0A0.
| Parameter | Specification |
|---|---|
| Brand | JUKI |
| Product Name | JUKI 505 Nozzle |
| Product Type | SMT Pick & Place Nozzle |
| Nozzle Number | 505 |
| Tip Outer Diameter | Ø3.5 mm |
| Tip Inner Diameter | Ø1.7 mm |
| Tip Type | Pad Type |
| Operating Method | Vacuum Pick-Up |
| Machine Compatibility | JUKI SMT Pick & Place Machines |
| Compatible Series | JUKI KE Series / FX Series |
| Primary Function | Component Pick-Up & Placement |
| Application | SMT PCB Assembly |
₹1,722
You save ₹172(10% off)
Inclusive of all taxes
Estimate delivery times: 5-7 days .
