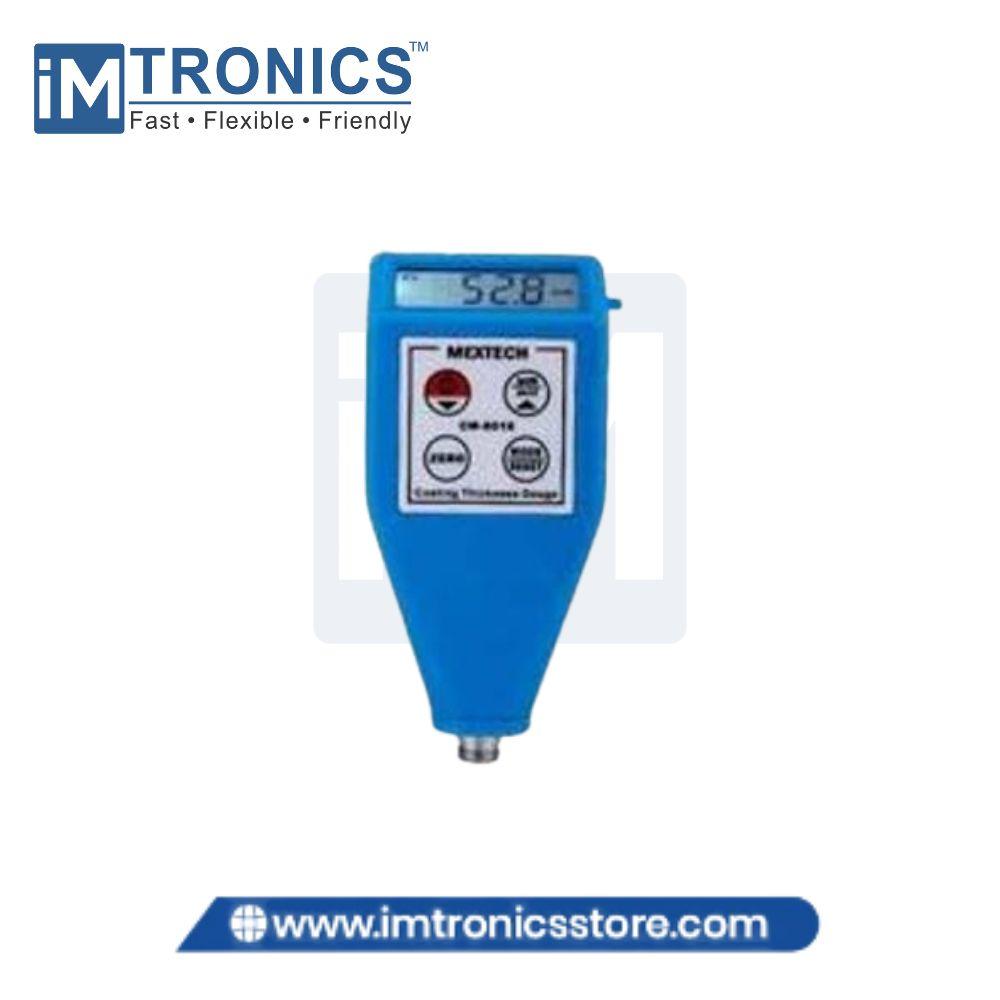

The MEXTECH CM-801 Coating Thickness Meter is a portable digital instrument designed for non-destructive measurement of coating thickness on metal substrates. It is suitable for checking coatings such as paint, plastic, enamel, zinc, aluminium, chrome, lacquer and other compatible coatings. The CM-801 uses an internal probe and supports coating inspection for industrial production, maintenance and quality-control applications.
| Parameter | Specification |
|---|---|
| Product Type | Coating Thickness Meter |
| Brand | MEXTECH |
| Model | CM-801 |
| Display | 4-Digit LCD, 10 mm |
| Measuring Range | 0–1350 µm / 0–53 mil |
| Accuracy | ±2–3% n or ±2.5 µm or 0.1 mil, whichever is greater |
| Resolution | 0.1 µm (0–99.9 µm); 1 µm (above 100 µm) |
| Probe Type | Internal Probe |
| Operating Principle | Magnetic Induction (F) |
| Minimum Measuring Area | 6 mm |
| Minimum Sample Thickness | 0.3 mm |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | ≤80% RH |
| Calibration | Self Calibration |
| Auto Power Off | Yes |
| Battery Indicator | Low Battery Indication |
| Power Supply | 2 × 1.5 V AAA Batteries |
| Display Size | 42 × 12 mm |
| Dimensions | 115 × 57 × 26 mm |
| Accessories | Manual, Calibration Foil, Carrying Case & Substrate Block |
