MexTech CM-801E Coating Thickness Meter

SKU code: #IMT00375

Category Name: SMT Tools

₹15,950 (10% off)

MRP

₹17,722

You save ₹1,772(10% off)

Inclusive of all taxes

₹15,950 (10% off)

MRP

₹17,722

You save ₹1,772(10% off)

Inclusive of all taxes

Available Units

Available Stocks : 4

Estimate delivery times: 5-7 days .

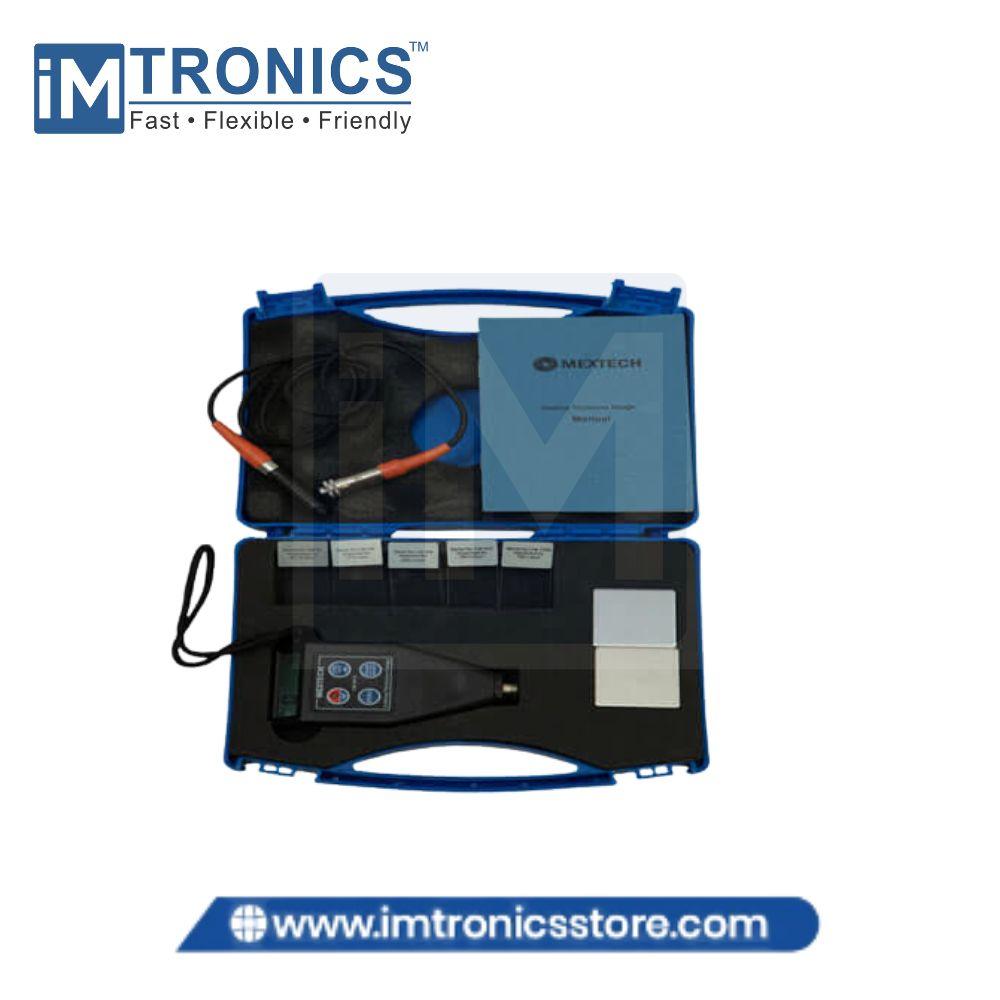

MexTech CM-801E Coating Thickness Meter

The MEXTECH CM-801E Coating Thickness Meter is a portable digital instrument designed for non-destructive measurement of coating thickness on metal substrates. It can be used for checking coatings such as paint, lacquer, enamel, galvanizing, anodizing, plastic coating and other compatible surface finishes.

Specifications

Parameter	Specification
Product Type	Coating Thickness Meter
Brand	MEXTECH
Model	CM-801E
Display	4-Digit LCD, 10 mm
Measuring Range	0–1350 µm / 0–53 mil
Accuracy	±2–3% n or ±2.5 µm or 0.1 mil, whichever is greater
Resolution	0.1 µm (0–99.9 µm); 1 µm (above 100 µm)
Minimum Measuring Area	6 mm
Minimum Sample Thickness	0.3 mm
Operating Temperature	0°C to 50°C
Operating Humidity	≤80% RH
Calibration	Self Calibration
Auto Power Off	Yes
Battery Indicator	Low Battery Indication
Power Supply	2 × 1.5 V AAA Batteries
Display Size	42 × 12 mm
Dimensions	115 × 57 × 26 mm
Weight	Approx. 200 g, excluding batteries

Applications

Paint Thickness Inspection – Measures paint coating on compatible metal surfaces.
Galvanizing Inspection – Checks protective zinc coating thickness.
Automotive Inspection – Useful for evaluating vehicle paint layers.
Powder Coating Inspection – Checks applied coating thickness on metal parts.
Quality Control – Supports coating-process verification.
Industrial Maintenance – Helps assess protective surface coatings.
Metal Fabrication – Useful for inspection of finished metal components.
