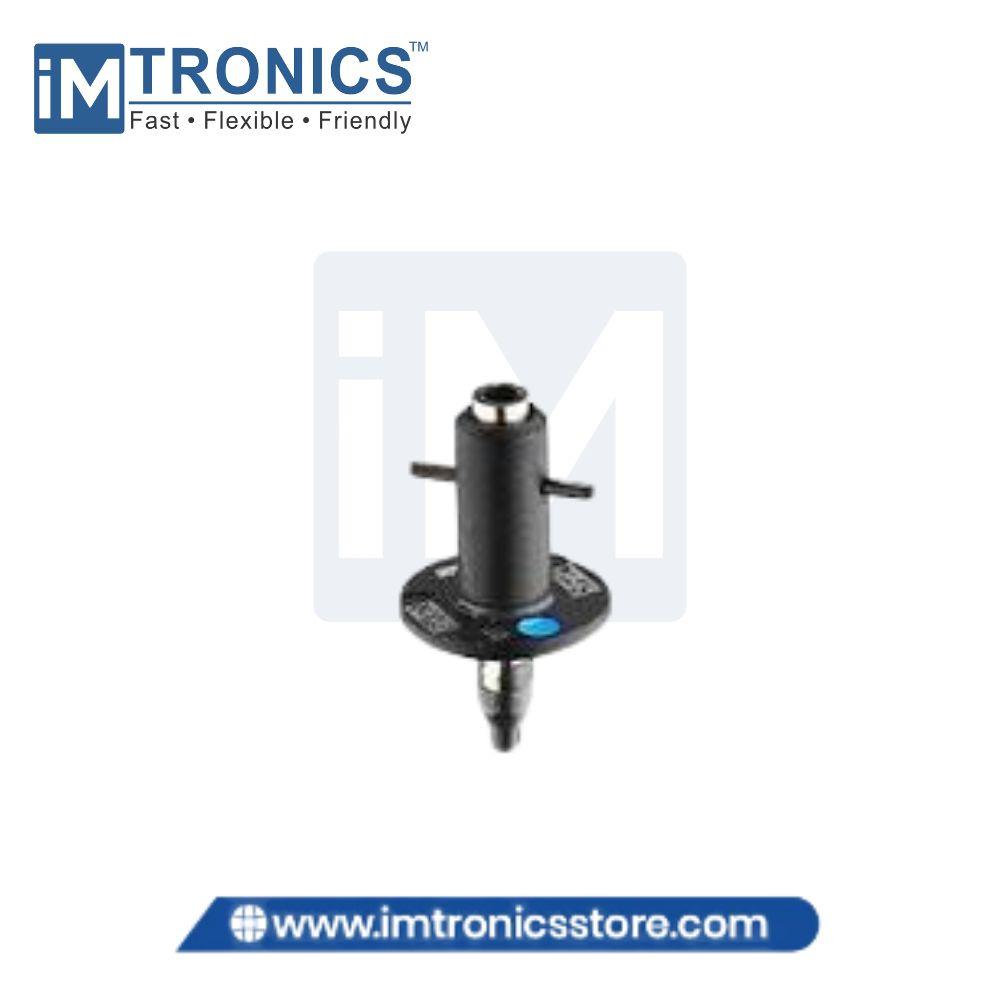

Fuji NXT H24 Nozzle 0.7mm

The Fuji NXT H24 Nozzle 0.7mm is an SMT pick-and-place nozzle designed for compatible FUJI NXT H24 placement heads. It uses vacuum suction for picking small electronic components from feeders and placing them accurately onto PCB locations during automated SMT assembly. The 0.7mm nozzle size is intended for compatible miniature components with a suitable pickup surface.

Specifications

Applications

• Small SMD Component Placement – Used for automated pickup and placement of compatible miniature SMD components.
• FUJI NXT Production Lines – Suitable for compatible FUJI NXT machines equipped with H24 placement heads.
• Vacuum Component Pickup – Uses vacuum suction for controlled pickup of compatible components from feeders.
• Precision PCB Assembly – Supports accurate and repeatable placement during high-speed SMT production.
• Fine Component Handling – The 0.7mm nozzle size is suitable for components having an appropriate pickup surface and package dimensions.
• Nozzle Replacement & Maintenance – Suitable for replacing a compatible worn or damaged nozzle to maintain reliable placement performance.
• Electronics Manufacturing – Used in SMT production, PCB assembly, prototyping, and electronics manufacturing.
