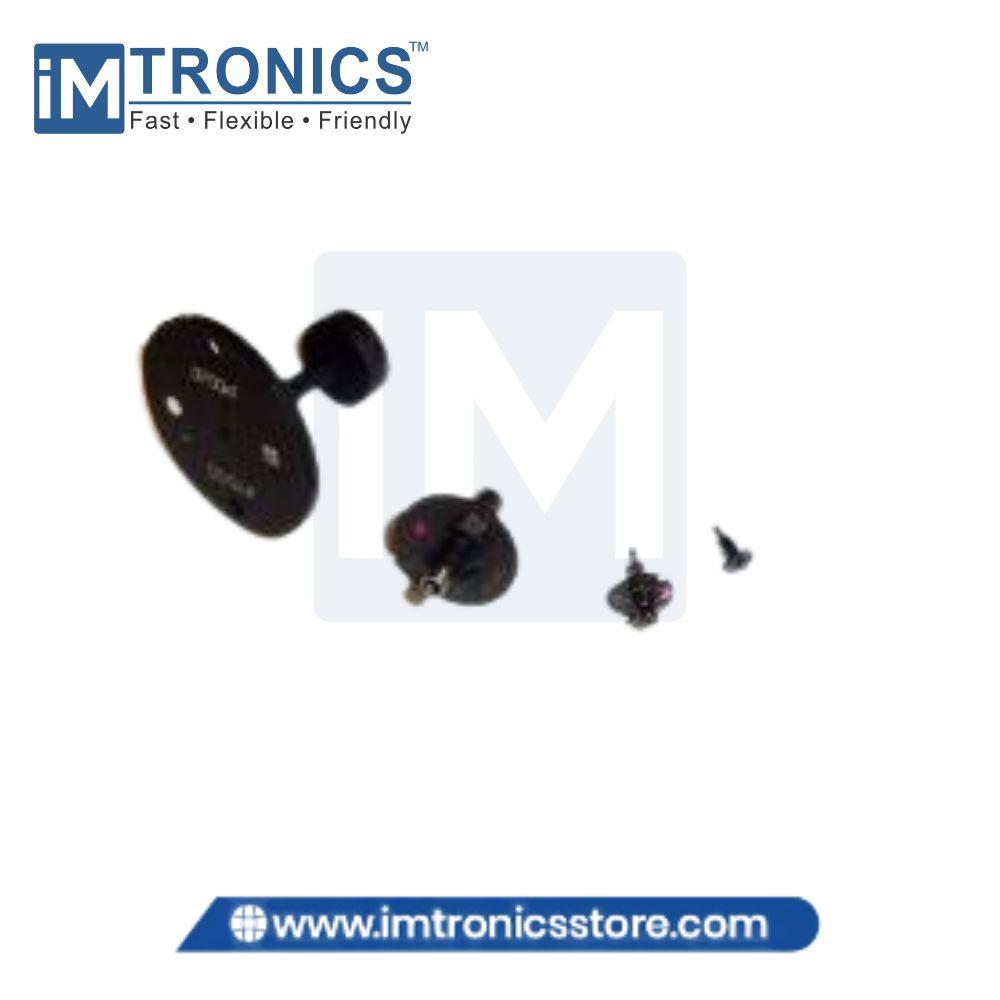

Fuji NXT H24 Nozzle 1.1mm

The Fuji NXT H24 Nozzle 1.1mm is an SMT pick-and-place nozzle designed for compatible FUJI NXT H24 placement heads. It uses vacuum suction to pick compatible electronic components from feeders and place them accurately onto PCB locations during automated SMT assembly. The 1.1mm nozzle size is intended for compatible small components based on package dimensions and pickup surface.

Specifications

Applications

• SMT Component Placement – Used for automated pickup and placement of compatible SMD components onto PCBs.
• FUJI NXT Production Lines – Suitable for compatible FUJI NXT machines equipped with H24 placement heads.
• Small Component Handling – The 1.1mm nozzle size is suitable for compatible small components with an appropriate pickup surface.
• Vacuum Component Pickup – Uses vacuum suction to securely pick components from compatible feeders.
• Precision PCB Assembly – Supports accurate and repeatable component placement during SMT production.
• Nozzle Replacement – Suitable for replacing a compatible worn or damaged nozzle during machine maintenance.
• Electronics Manufacturing – Used in SMT production, PCB assembly, prototyping, and electronics manufacturing.
