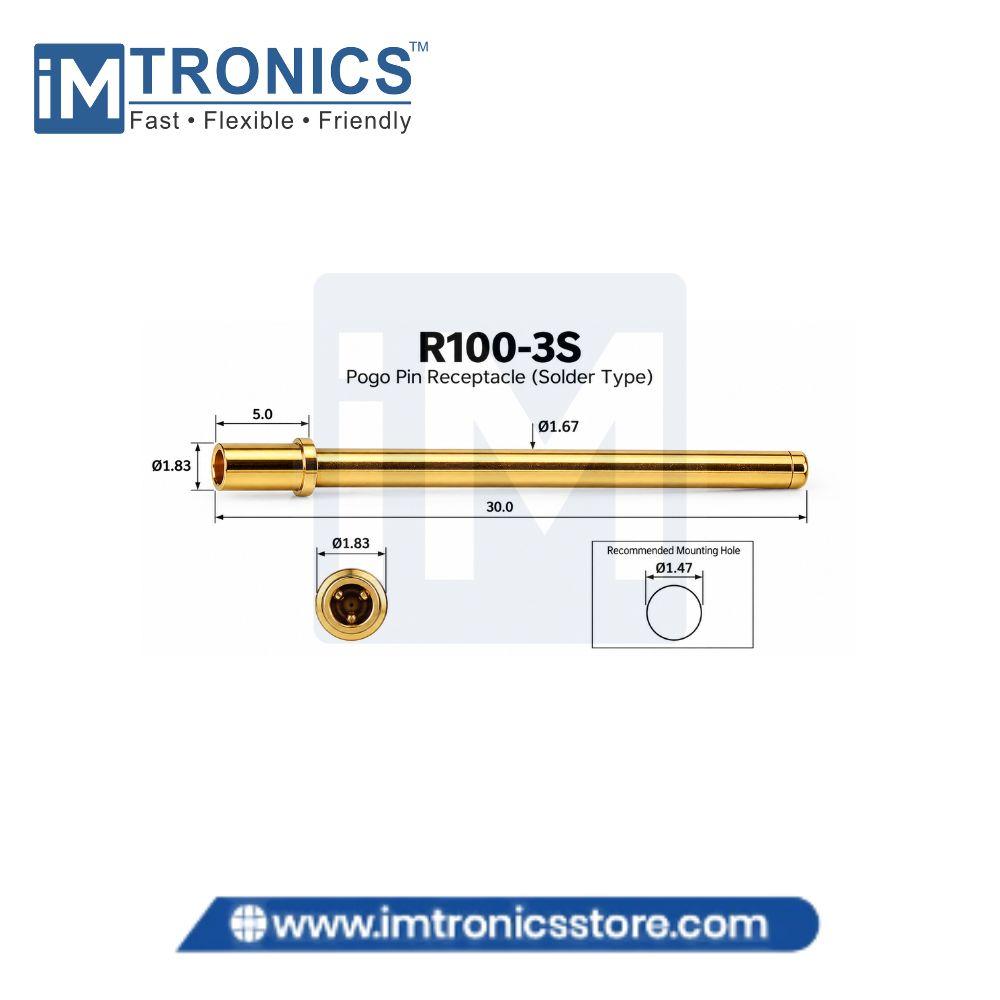

The R100-3S is a solder-type receptacle for P100-series spring test probes/pogo pins. It is installed in PCB test fixtures and test jigs to provide a replaceable connection point for the probe. This makes probe replacement and maintenance easier in repetitive electronics testing applications.
| Parameter | Specification |
|---|---|
| Product Name | Pogo Pin Receptacle |
| Model | R100-3S |
| Product Type | Spring Test Probe Receptacle |
| Compatible Probe Series | P100 Series |
| Connection Type | Solder Type |
| Overall Length | 30 mm |
| Outer Diameter | 1.67 mm |
| Collar Diameter | 1.83 mm |
| Collar Height | 5 mm |
| Recommended Mounting Hole | 1.70 mm |
| Current Rating | 3 A |
| Contact Resistance | 50 mΩ |
| Material | Phosphor Bronze / Brass |
| Surface Finish | Gold Plated |
| Application | PCB Testing & Test Fixtures |
