The R50-2S is a solder-type receptacle for P50-series spring test probes. It is used in PCB test fixtures and jigs to hold replaceable pogo pins while providing a solderable connection to wiring. Typical applications include ICT, FCT, continuity testing, programming fixtures, and electronics production testing.
| Parameter | Specification |
|---|---|
| Product Name | Pogo Pin Receptacle |
| Model | R50-2S |
| Product Type | Spring Test Probe Receptacle |
| Compatible Probe Series | P50 Series |
| Connection Type | Solder Type |

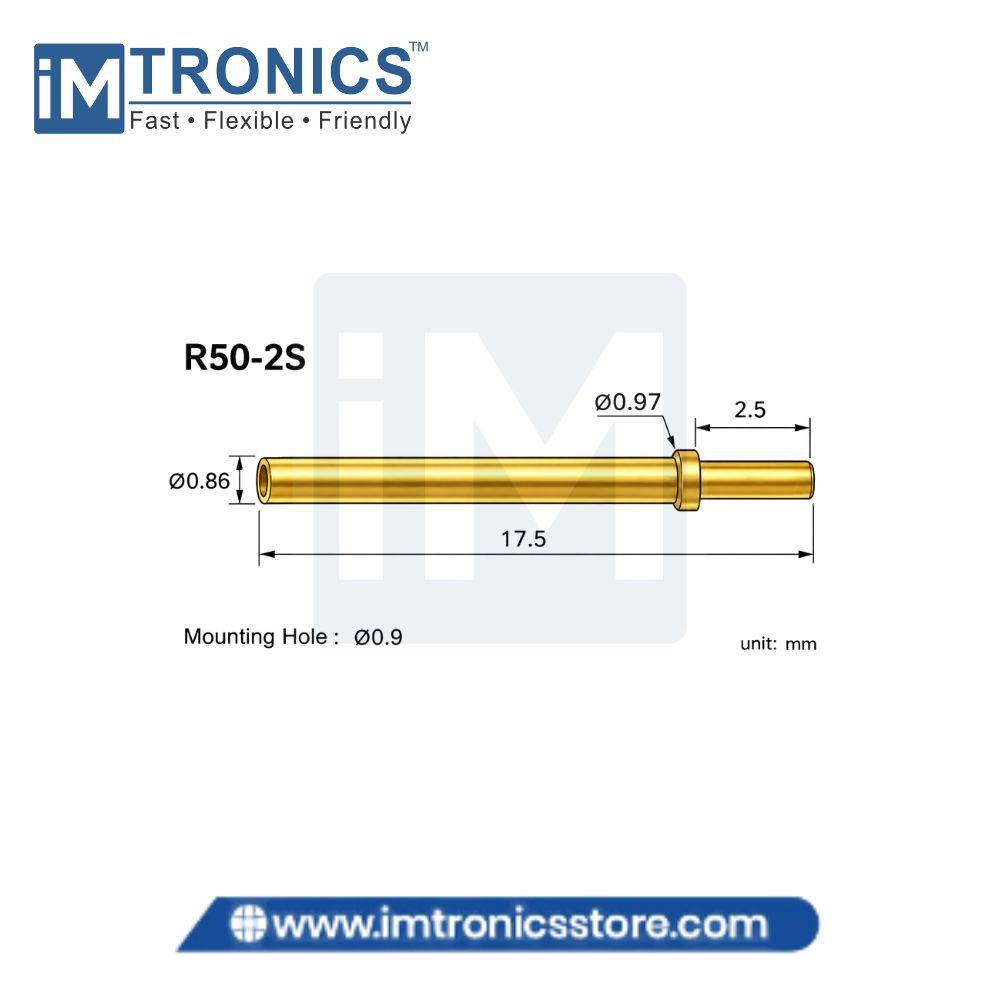

| Overall Length | 17.5 mm |
| Outer Diameter | 0.86 mm |
| Collar Diameter | 0.97 mm |
| Collar Height | 2.5 mm |
| Mounting Hole Diameter | 0.9 mm |
| Current Rating | Up to 3 A |
| Contact Resistance | 50 mΩ |
| Material | Phosphor Bronze |
| Surface Finish | Gold Plated |
| Application | PCB Testing & Test Fixtures |
| Suitable For | ICT, FCT & Electronics Testing Jigs |
