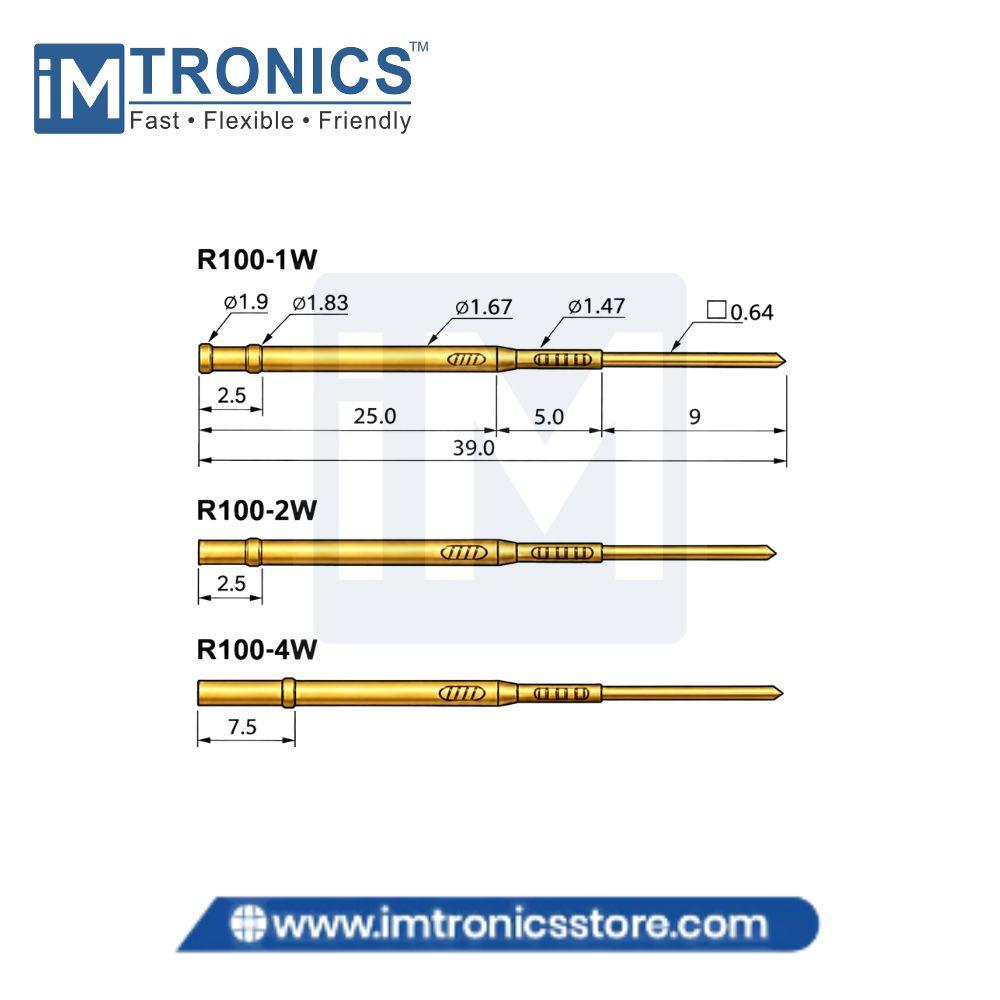

The R100-4W Pogo Pin Receptacle is a wire-wrap style socket designed for P100-series spring test probes. It is installed in PCB test fixtures and allows the test probe to be replaced without rewiring the complete fixture. It is commonly used in ICT, FCT, programming fixtures, and electronics production testing.
| Parameter | Specification |
|---|---|
| Product Name | Pogo Pin Receptacle |
| Model | R100-4W |
| Product Type | Spring Test Probe Receptacle |
| Compatible Probe Series | P100 Series |
| Connection Type | Wire-Wrap |
| Overall Length | Approx. 38.3–39 mm |
| Outer Diameter | 1.67 mm |
| Collar Height | 7.5 mm |
| Minimum Pitch | 2.54 mm (100 mil) |
| Contact Resistance | 50 mΩ |
| Current Rating | Up to 3 A |
| Material | Brass / Phosphor Bronze |
| Surface Finish | Gold Plated |
| Application | PCB Testing & Test Fixtures |
